80 - 300 Mm C Purlin Roll Forming Machine Manual Change Size Energy Efficiency

Name: 80 300 Mm C Purlin Roll Forming Machine Manual Change Size Energy Efficiency
Brand: CHBEST
Price: 13500 USD

Quality 80 - 300 Mm C Purlin Roll Forming Machine Manual Change Size Energy Efficiency for sale

Brand Name : CHBEST

Model Number : XY80-300

Certification : CE/BV/SGS

Place of Origin : China Hebei

MOQ : 1 set

Price : 13500 USD

Supply Ability : 20 sets/month

Delivery Time : 30-40 days

Packaging Details : plastic film for naked machine

Product name : 80 - 300 mm Manual Change Size C Purlin Roll Forming Machine Roofing Usage

Color : Blue or as your request

Machine speed : 10m/min

Machine dimention : 7.5mx1.8mx1.4m

Machine power : 11kw+5.5kw

Driven system : Chain or gear box

Control system : PLC

Cutting type : Hydraulic

Warranty : 2 years

Life time : more than 10 years

Contact Now

80- 300 mm Manual Change Size C Purlin Roll Forming Machine Roofing Usage

Working flow

Decoiler-----feeding----- leveling ------roll forming ------ punching-----cutting----output table

Machine Component

De-coiler	1 set
Leveling device	1 set
Forming machine	1 set
punching device	1 set
Cutting device	1 set
PLC control box	1 set
Hydraulic pump station	1 set
Production support table	1 se

Decoiler

Type	Manual type(standard)	Hydraulic type(option)
Width	500mm	600mm
Capacity	5000kgs	5000kgs-8000kgs
Inner diameter	450-550mm	450-550mm
Outter dimater	1500mm	1800mm

roll forming machine

Item	Parameter detail
Processing Material	GI and PPGI Coils
Material thickness	1-3mm(standard), 3-5mm(customized)
Machine frame	360#H steel, Adopt diagonal line welding, leveling instrument measurement to make sure the final frame is high-precision
Machine siding panel	Pillar type(option) 20mmPillar thickness:35mm
Forming stations	13-18 stations (according to the material thickness)
Machine rollers	high grade Gcr15 forged steel(bearing material), Hard quenching and hard chroming with thickness 0.05mm Processing way:cutting--drilling--CNC lathing--quenching--CNC lathing--chroming
Machine Shaft	φ80-90mm high garde No.45 steel after treatment,
Machine spacers	CNC lathing in high-precision and wire-electrode cutting
Machine bearings	China Haerbin bearing or SKF international bearing(option)
Driving system	2 inch chain or gear box(option)
Machine power	7.5kw-22kw(according to the size and thickness)
Machine working speed	without punching:8-12m/min or 10-30m/min(option)
Machine testing method	After machine installation, we will test it ourselves, compare with the profile drawing, the difference is controlled in 0.5mm

Punching device

Item	Parameter detail
Frame processing	the whole levelling surface is made by drilling machine
Mould material	Cr12mov
Mould processing	wire eletrode-cutting for the mould shape, it will save pressure
Hole size	According to your request
Hole number	According to your request
Pressure	20Mpa

Cutting device

Type	Mould cutting
Blade material	Cr12mov quenching and grinding
Blade processing	wire-electrode cutting, but the final product is clean after cutting, the the product shape this is technology
Working	Hydraulic type

Stacker

Type

Manual

Auto(option)

Length

2pieces, length is adjustable

according to your requirement

PLC

Main item	Parameter detail
PLC	Delta(standard) or according to your request
Inverter	China brand(standard) or according to your request
Touch screen	Mcgs(standard) or according to your request
Encoder	China brand(standard) or according to your request
Voltage/HZ/Phase	380v/50-60hz/3phase

Hydraulic pump

Main Item	Parameter detail
Motor	3kw China brand or according to your request
Pump	China brand or according to your request
Solenoid valve	China brand or according to your request
Cooling system	Cooling fan

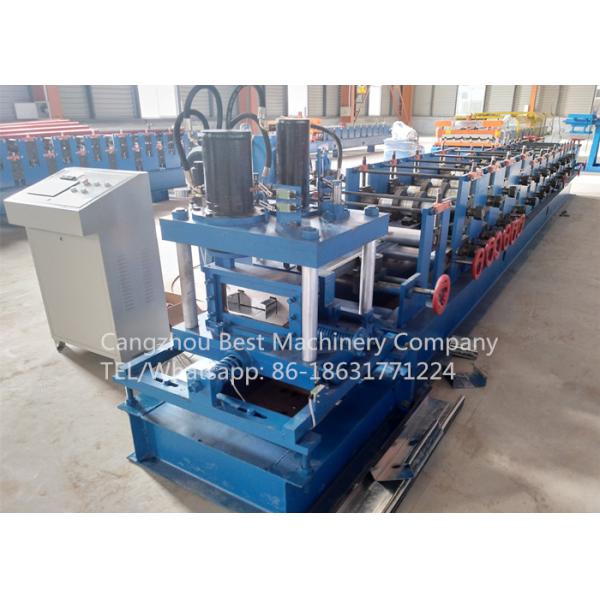

Machine Photo

80 - 300 Mm C Purlin Roll Forming Machine Manual Change Size Energy Efficiency
